Hydroponic Infrared Biodegradation Analyzer

Hydroponic Infrared Biodegradation Analyzer

Brand: Thmorgan
Model: T2400 PLUS

I. Product Use

1. Meets the testing standards of GB/T19276.2-2003;

2. Meets the testing standards of GB/T33616-2017;

3. Meets the testing requirements of GB/T40612-2021;

4. Meets the testing requirements of GB/T40367-2021;

5. Meets the testing standards of ISO14852-1999;

6. Meets the testing standards of ISO19679-2020;

7. Can be used for activated sludge biodegradation testing;

8. Can be used for bio-based biodegradability testing;

II. Product Features

1. Fully meets the testing requirements of GB/T 19276.2 standard;

2. Up to 24 channels can be used simultaneously for biodegradability testing;

3. High detection accuracy, online determination of carbon dioxide and methane release;

4. Using an aqueous culture and open oxygen supply design method to simulate a strongly aerobic environment;

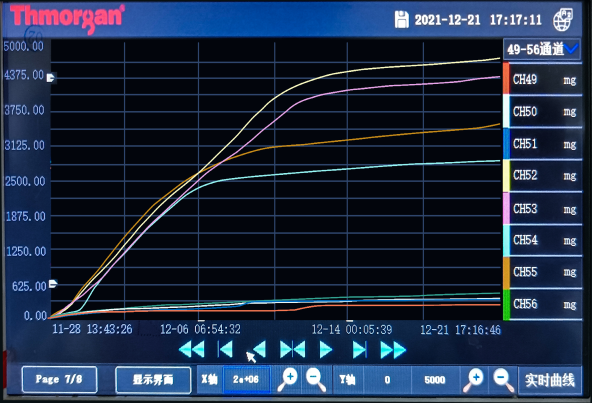

5. Dual display of carbon dioxide and methane concentration and cumulative amount, which can be exported in the form of charts;

6. Air bath temperature control, temperature control accuracy ±0.1℃;

7. Magnetic stirring system: provides long-term stirring;

8. Cloud platform detection, real-time online observation of data and curves;

III. Product Principle

This experimental system simulates the biodegradation process of bio-based materials under aerobic hydroponic conditions. In an aerobic hydroponic environment, microorganisms use bio-based materials as a carbon source, consuming oxygen and producing carbon dioxide, water, and other inorganic substances. The generated carbon dioxide is monitored in real-time for its concentration using a high-precision infrared sensor. By integrating the detected real-time carbon dioxide concentration with flow rate and time, the carbon dioxide release amount of the sample biodegradation can be calculated. The percentage of the sample biodegradation's carbon dioxide release amount to its theoretical carbon dioxide release amount is the biodegradation rate.







IV. Product Parameters

1. Operating Conditions:

1.1 Power voltage: AC, 220V±10%, 50Hz, single-phase;

1.2 Operating temperature: 15～30℃;

1.3 Relative humidity: ≤80％;

1.4 Total power: 7KW;

1.5 External dimensions (L×W×H): 3500mm×900mm×1600mm;

1.6 Gross weight: 1000KG;

2. Oxygen Supply System:

2.1 Air supply method: continuous aeration oxygen supply, built-in air pump;

2.2  Air pump control: air pump 24 channels;

2.3  Flow control method: PLC control, flow rate can be automatically adjusted according to the set value;

2.4  Flow control accuracy: ±1%;

2.5  Flow acquisition method: real-time acquisition by electronic flow meter;

2.6  Flow acquisition range: 0-300ml/min;

2.7  With 24 electronic flow meters to collect flow rate;

2.8  Flow control and flow acquisition operate independently;

3. Temperature Control System:

3.1 Temperature control method: air bath;

3.2 Set temperature range: room temperature - 90℃, step 0.1℃;

3.3 Temperature control accuracy: ≤±0.1℃;

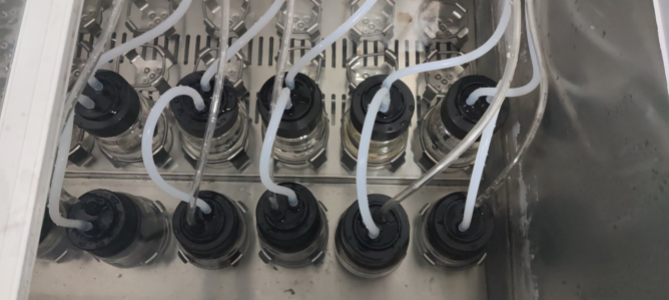

4. Reaction System:

4.1 Number of channels: ≥24;

4.2 Stirring method: 24-channel magnetic stirring;

4.3 Reaction method: liquid reaction;

4.4 Reaction bottle volume: 500ml;

4.5 Decarbonization system: Yes;

4.6 Condensation system: Yes;

5. Condensation dehumidification system:

5.1 System composition: low-temperature thermostat, fully automatic condensation bottle and dehumidification bottle;

5.2 Channel composition: each channel has its own condensation bottle and dehumidification bottle;

5.3 Condensation method: water bath condensation is used for the condensation bottle;

5.4 Condensation temperature: the condensation temperature can be as low as -4℃;

5.5 Drainage method: condensation water can be automatically drained at regular intervals;

5.6 Dehumidification method: the dehumidification bottle adopts a double-layer design;

5.7 Connection method: the condensation bottle and dehumidification bottle are connected in series;

6 .Detection System:

6.1 Detection Method: Infrared sensor detects carbon dioxide, methane sensor detects methane;

6.2 Number of Sensors: 2 infrared sensors, 2 methane sensors;

6.3 Display Method: Simultaneous dual display of carbon dioxide and methane concentrations;

6.4 Detection Range: Carbon dioxide 0-5000ppm, methane 0-5000ppm;

6.5 Resolution: 1ppm;

6.6 Data Acquisition Cycle: 5 minutes;

6.7 Sensor Dehumidification Protection System: Yes;

6.8 Gas Analyzer: Can be used in conjunction;

6.9 Anaerobic Biodegradation Experiment: Can be performed;

7. Software Control System:

7.1 Software control system with independent intellectual property rights;

7.2 The software collects data and can generate real-time data curves;

7.3 Supporting System: win7/8/10 professional edition operating system;

7.4 Data Storage Method: Real-time storage during the experiment;

7.5 Has a cloud platform, allowing for remote data retrieval.

7.6 Running Durability: Can work continuously for more than 6 months;

V. Product Configuration

Serial Number

Name

Quantity

Unit

Remarks

1

Host

1

Unit



2

Reaction Bottle

24

Piece



3

Decarbonization System

1

Set



4

Condenser

24

Piece



5

Condensing System

1

Set



6

Dehumidifying Bottle

24

Piece



7

Connecting Tube

1

Set



8

Software

1

Set



9

Random Files

1

Set
