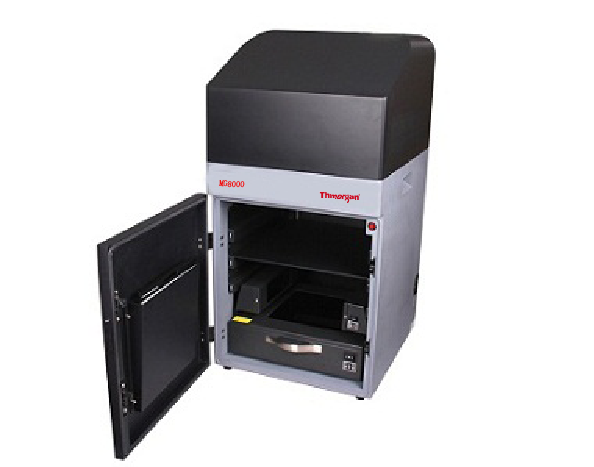

Gel imaging system
Product use:
1. It is used for various chemiluminescence imaging, such as ECL, ECLPlus, SuperSignal, etc;
2. It is used for multi-color fluorescence imaging, such as Cy2, Cy3, Cy5, TLCPlates, GFP Plates, SYBR Green, SYBR Gold, SYBR Safe, FITC, GelStarTM, Fluorescein, TexasRed, fluorescent plates, etc;
3. It is used for DNA/RNA and protein gel electrophoresis imaging of various dyes;
4. It is used for various hybrid film imaging such as Western, Northern, Southern, Dot/Slotblot, etc;
5. Other applications, such as culture plate colony count, enzyme label plate, autoradiography film analysis, etc.
Product features:
1. It is used for chemiluminescence, multi-color fluorescence, gel and other imaging;
2. Sample platform: 4-layer automatic inductive sample platform, the shooting software can automatically identify samples;

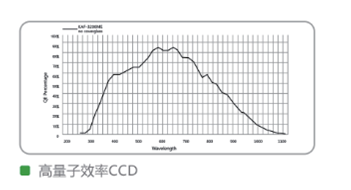

3. High resolution CCD: use 6 million pixel CCD, with high resolution and sensitivity;
4. Deep cooling CCD: Peltier technology is used for deep cooling of CCD, which can perform long-term ECL luminescence imaging;
5. Pixel merging: through pixel merging, further improve the sensitivity of ECL imaging and capture weak luminous signals;
6. Large aperture fixed focus lens: use F0.95 large aperture electric fixed focus lens, with automatic focusing function, which can automatically focus on the captured sample without manual adjustment;
7. The shooting software has the MARKER merge function, and the pictures taken can be directly entered into the analysis software for analysis;
8. The analysis software has the functions of swimlane identification, strip identification, background calibration, genetic number analysis, VNTRs analysis, ECL Western Blot analysis, PCR density analysis, colony/clone analysis, dot blot analysis and distance measurement analysis, which can help users quickly interpret the samples.
Technical parameters:
Host parameters:
1. Camera: imported scientific research grade cryogenic camera;
2. CCD resolution: 2736 x 2192 pixels (6 million pixels), 1 * 1/2 * 2/4 * 4/pixel merging function;
3. Lens: F0.95/25mm large aperture electric fixed-focus lens;
4. Number of acquisition bits: 16bit (0-65536 gray scale);
5. Refrigeration temperature: to - 68 ℃;
6. Reading noise: 6e -;
7. Number of full well electrons: 16000e - singlepixel;
8. Sample table: 4-layer automatic inductive sample platform, which can automatically identify samples;
9. White light board: white light conversion board 22.5 * 22.5cm;

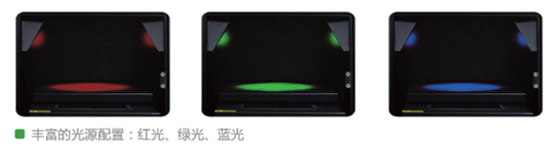

10. Fluorescent light source: 6 ring illumination high-purity narrowband RGB three-color fluorescent light sources, standard configuration 1.480nm Blue, 2 530 nm Green，3. 635 nm Red；
11. UV reflector: 254 nm, optional 302 nm/365 nm;
12. UV transmission table: 21 * 525px, 302+365nm dual wavelength (optional with 21 * 650px, 25 * 650px area and intensity adjustable function);
13. Blue light transmission table (optional): 12 * 300px area, brightness adjustable;
14. Filter: standard 535nm/590nm/605nm/699nm four-piece filter with high transmittance;
15. Filter wheel: 6-position automatic control filter wheel (optional 8-position electric filter wheel);
Software parameters:
16. Software: shooting software and image analysis software
16.1 The shooting software can be used to shoot all fluorescent and visible light samples from ultraviolet to red, green and blue light bands.
16.2 After placing the sample, the lens will focus on the sample automatically.
16.3 The image contrast can be adjusted through histogram, and three exposure modes can be provided: automatic exposure, single frame shooting and integral shooting. The exposure time can be customized and the Marker merge option can be selected according to needs to generate a new image. The captured image can be directly entered into the analysis software for analysis.
16.4 The captured image can be rotated, cropped, contrast-enhanced and automatically optimized through the analysis software, and has the functions of swimlane recognition, strip recognition, background calibration, genetic number analysis, VNTRs analysis, ECL Western Blot analysis, PCR density analysis, colony/clone analysis, spot hybridization analysis and distance measurement analysis, which can quickly help users interpret the sample.
|
|
|
|
bacterial colony |
Dot hybridization |
|
|
|
|
Fluorescent labeling |
ECL imaging |
|
|
|
|
DNA Gel imaging |
|
Standard configuration:
1. One host
2. One set of software
